Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile

  • Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile
  • Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile
  • Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile
  • Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile
Luogo di origine Guangdong, Cina
Marca Goldantell/OEM
Numero di modello SERIE GAT-660
Quantità di ordine minimo 1
Prezzo $803-980

Contattami per campioni gratuiti e coupon.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, offriamo assistenza online 24 ore su 24.

x
Dettagli
Tipo di controllo dell'accesso Scheda RFID, sistema ESD, riconoscimento facciale BARRIERA Open/Close Time 0,2 s
Interfaccia di comunicazione RS-232, RS485, TCP/IP Direzione operativa 2 vie
motore barriera motore senza spazzole Livello di protezione IP54
Sensore a infrarossi 4-6 coppie Tensione del motore 24 V DC
Alimentazione elettrica 100-240V ((AC) Velocità di passaggio 35 persone/min
Dimensione del mobile 1400*120*1000mm Larghezza del passaggio 550-600mm
MCBF 10 milioni di volte Umidità di lavoro 30%~95%
Materiale del bracciolo 10 mm acrilico, vetro temperato o acciaio
Evidenziare

automatic swing barrier gate

,

smart hotel access control turnstile

,

remote control entrance baffle gate
Lasciate un messaggio
Descrizione di prodotto

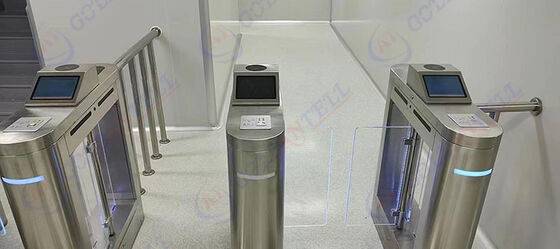

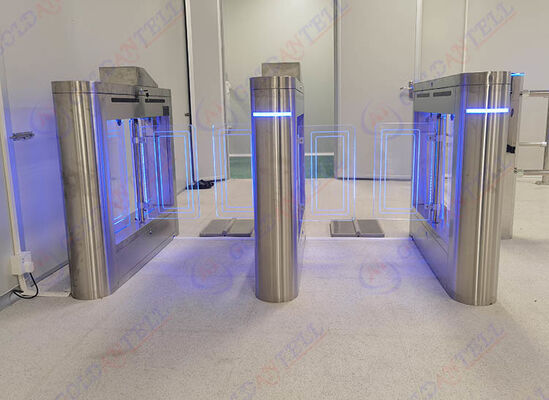

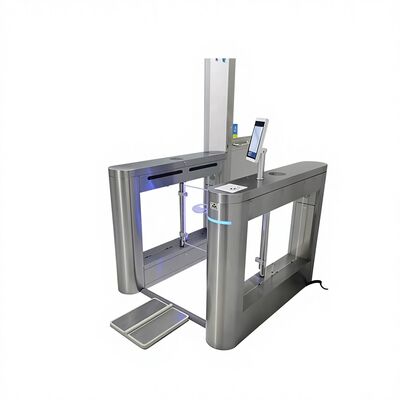

Automatic Swing Barrier Turnstile

High-performance optical turnstile designed for controlling pedestrian access in high-traffic environments with sleek, modern aesthetics suitable for upscale business and institutional settings.

Key Features
  • Controls pedestrian entry/exit in restricted areas with high traffic flow
  • Sleek design with minimal footprint for premium environments
  • Prevents unauthorized access while allowing emergency release
  • Wide passage design with clear, bi-directional swinging panels
  • Integrated fire control interface for emergency rapid deployment
Technical Specifications
Specification Details
Cabinet Dimension 1400 (L) x 200 (W) x 1000 (H) mm
Cabinet Material 304 stainless steel (316 ss can be custom-made)
Power Supply AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/Closing Time 0.2s
Arm Material 10mm Acrylic, tempered glass, or steel (customizable)
Access Mode Single in/out or Bidirectional
Passthrough Width 900mm (or custom)
Mechanism DC Brushed motor + Clutch (or Servo motor)
Communication Interface RS485, TCP/IP
Infrared Sensor 6~10 pairs
Optimal Flow Rate 40 persons/min (open), 35 persons/min (closed)
Reset Time After Break Down Default 10s (adjustable)
MCBF 5,000,000 Cycles
Working Humidity 30%~95%
Standard Functions & Features
  • Normal open/close control via external button (for group passage)
  • Automatic gate opening during power failure for fire safety compliance
  • Infrared logical judgment with 8-10 pairs of sensors
  • Voice prompt functionality
  • Extendable box housing and retractable arms for project flexibility
  • Triple anti-clamping protection: infrared, mechanical, and current detection
  • Industrial-grade PC flap for maximum durability
Project Customization Options
  • Single or multiple passage configurations
  • Arm colors: Standard Blue, Red, Black, Transparent (with optional LED lighting)
  • Two-way access with RFID, fingerprint, barcode scanner, ESD tester, or custom readers
Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile 0 Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile 1 Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile 2 Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile 3
Manufacturer Profile

Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile systems, access control, and parking management products since 2007. We offer comprehensive OEM services and custom product development.

Internal Components
Office Fast Access Control Smart Hotel Remote Control Entrance Automatic Swing Barrier Baffle Gate Turnstile 4
Our Services & Strengths
  • Professional design team for OEM and ODM services
  • CE certified with extensive European government project experience
  • Experienced sales team with over 4 years in turnstile industry
  • Competitive pricing with high-quality standards and reliable after-sales support
  • Custom product development and complete access control system solutions
Frequently Asked Questions
Warranty Period: One-year guarantee & Lifetime technical support
Payment Methods: T/T, Western Union, LC, PayPal (terms negotiable based on order value)
Factory Visits: Welcome at any time
Minimum Order Quantity: Any quantity acceptable
Pre-sale & After-sale Services
  • Pre-sale: Comprehensive communication and product information
  • On-purchase: Regular production updates with photos and testing videos
  • After-sale: Detailed installation guides, manuals, and instructional videos
  • OEM/ODM: Over 10 years of customization experience for logos, sizes, and colors
