High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction

  • High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
  • High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
  • High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
  • High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
  • High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction
Luogo di origine Guangdong, Cina
Marca Goldantell/OEM
Numero di modello Serie GAT-622
Quantità di ordine minimo 2
Prezzo $1,633

Contattami per campioni gratuiti e coupon.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, offriamo assistenza online 24 ore su 24.

x
Dettagli
Controllo di accesso Scheda RFID, codice QR Velocità della barriera 0,2 s
Interfaccia di comunicazione RS-232, RS485, TCP/IP Direzione operativa 2 vie
Tipo di motore Motore senza spazzole Livello di protezione IP54
Dimensioni 1400*120*1000mm (L*W*H) Tipo di visualizzazione Schermo LCD
Larghezza corsia 55-130 cm Alimentazione elettrica AC 110 ~ 240V 10% 50/60Hz
Materiale abitativo Acciaio inossidabile 304 Flusso ottimale 40 persone/min (aperte), 35 persone/min (chiuse)
Umidità di lavoro 30%~95% MCBF 5.000.000 di cicli
Sensori a infrarossi 6 ~ 10 coppie
Evidenziare

0.2s Barrier Open/Close Time Vertical Sliding Gate

,

IP54 Protection Vertical Sliding Gate

,

304 Stainless Steel Vertical Sliding Gate
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
High-Speed Half Height Vertical Sliding Gate Turnstile Portable Entry with QR Code/RFID Access Controller
High Speed Sliding Gate Half height Vertical portable entry turnstile with QR Code/RFID Access Controller
Key Features
  • Application: outdoor or indoor
  • LED indicator light: green and red indicate the passing information
  • Glass panel slides open horizontally to provide an unobstructed passageway
  • Safety: Gate auto opens when power is off to meet fire protection requirements
  • Customizable: visible high glass panel prevents climbing over the gate for unauthorized access
  • Standard external electrical interface compatible with various reading/writing devices for easy system integration
Technical Specifications
No. Parameter Specification
1 Cabinet dimension 1400 (L) x 180 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Advanced Security Features
  • Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Bi-directional or single way operation
  • Gate auto-open during power failure for fire safety compliance
  • Anti-Tail gaiting feature prevents unauthorized entry
  • Wings open automatically during power interruption
  • Fast opening and closing time (0.2s)
  • Built-in mechanical lock prevents forced opening
  • Multiple pairs of IR sensors for enhanced security
Product Classification
  • Vertical shape
  • Bridge shape (this model)
  • Pillar shape (or tube type)
  • Single motor (suitable for single/multiple passageways)
  • Double motors (suitable for multiple passageways)

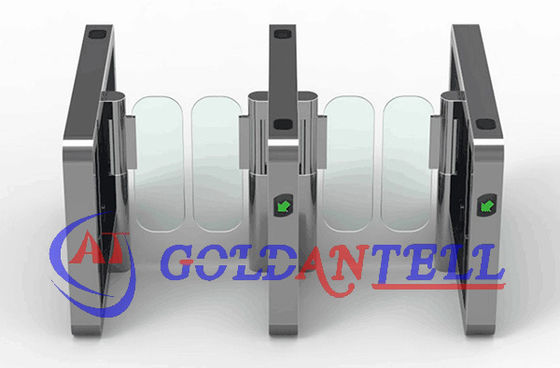

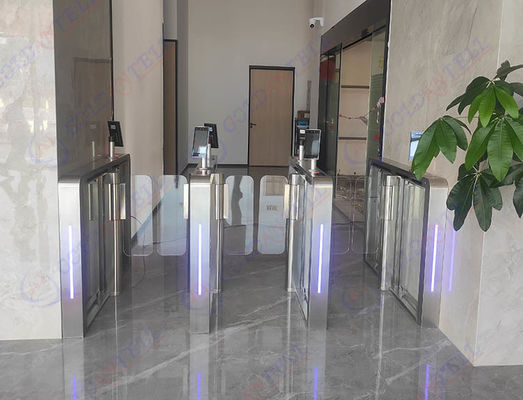

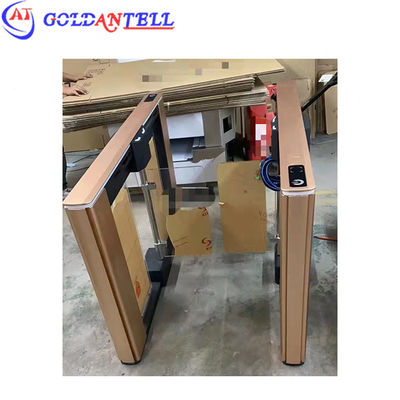

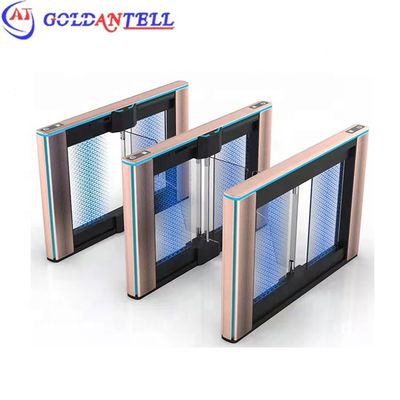

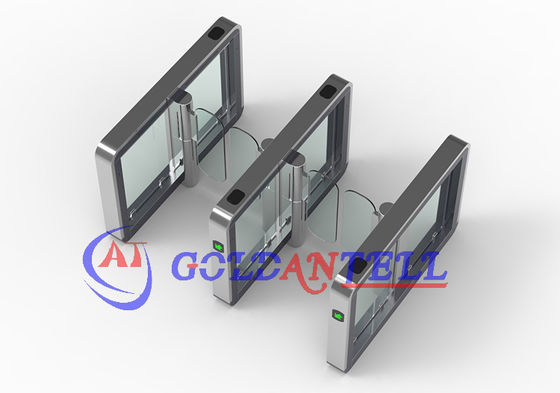

Product Images
High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction 0












High-Speed Vertical Sliding Gate with 0.2s Barrier Open/Close Time IP54 Protection and 304 Stainless Steel Construction 1

Typical Applications
  • Bank
  • Fitness Gym
  • Factory
  • Hotel
  • Movie theaters
  • Office buildings
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer with rich OEM/ODM experience for government projects.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you photos/videos of products and packages before final payment.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Packing Details
  • Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
  • Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
  • Professional, environmentally friendly packaging to ensure goods safety
Our Pre-sale & After-sale Service
  • Pre-sale: Detailed product information and consultation
  • On-purchase: Production updates with photos and testing videos
  • After-sale: Installation guides, manuals, and support videos
  • OEM/ODM: Custom logo, size, color options
  • Professional support: 16-hour response time
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Company Information

Shenzhen Goldantell Technology Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products since 2007. We specialize in customized products and OEM services with new designs introduced annually.

Our Services & Strength
  • Professional design team for OEM/ODM projects
  • CE approved with successful European government projects
  • Experienced sales team with 4+ years in turnstile industry
  • Competitive pricing with high quality standards
  • Custom solutions for access control systems
