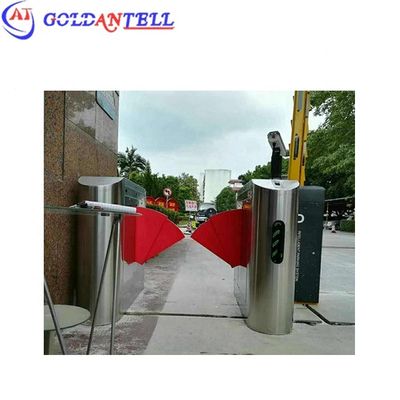

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control

  • High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control
Luogo di origine Guangdong, Cina
Marca Goldantell/OEM
Numero di modello serie GAT
Quantità di ordine minimo 2
Prezzo $1,203

Contattami per campioni gratuiti e coupon.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, offriamo assistenza online 24 ore su 24.

x
Dettagli
Tempo di apertura della barriera 0,2 s Interfaccia di comunicazione RS-232, RS485
Direzione operativa 2 vie motore barriera Motore senza spazzole
Materiale quadro un acciaio inossidabile di 304 gradi Dimensioni 1200*280*1000(millimetro)
Peso 150 ((kg) Lunghezza del braccio 285(mm)
Tensione di potenza CA 110~240 V, 50/60 Hz Tensione di azionamento 24 V.
Velocità di transito 30-40 persone al minuto Temperatura di lavoro -15°C-75°C
Angolo di swing 0°-180° Umidità relativa <95%, Nessuna concrezione
Classe di protezione IP54
Evidenziare

0.2s Turnstile Gate

,

304 Grade Stainless Steel Speed Gate

,

RFID Interface Flap Barrier
Lasciate un messaggio
Descrizione di prodotto
Entrance Control Flexible Security High Quality Electrical Standard Turnstile Flap Barrier Speed Gate with RFID Interface

High-quality electrical standard turnstile flap barrier speed gate with RFID interface for secure entrance control in various environments.

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 0
Specifications
Item Specification
Type Auto
Dimension 1200*280*1000mm
Power AC 110~240 V, 50/60 HZ
Swing angle 0°-180°
Operating Temperature -15°C-75°C
Relative Humidity <95%, No concretion
Communication Distance ≤1200m
Passing Speed 30-40 Persons/min
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Communication Connection RS485 Communication
Material SUS304
Protection class IP54
Application Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on
High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 1
Functions and Features
  • Self-examine and alarm function for easy maintenance
  • Programmable running status via main board keyboard
  • Safety stop when blocked to prevent injuries
  • Light and sound alarm for illegal intrusion detection
  • Automatic arm locking until opening signal received
  • Adjustable arm synchronization
  • Automatic reset function with adjustable timing (default 10sec)
  • Automatic opening when power off and closing when power on
  • Compatible with multiple reader devices (IC/ID, fingerprint, barcode, facial recognition, etc.)
  • Optional one-direction or bi-directional operation
  • Remote control and management capability
High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 2
Extendable Functions
  • Optional counter
  • Housing length options: 1.2m, 1.4m, or 1.6m
  • Flap arm material options: acrylic glass, resin, PVC
  • Flap arm color options: red, blue, yellow, colorless
Project Example
High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 3
About Shenzhen Goldantell Technologies Co., Ltd

We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We have exported to more than 50 countries and established long-term partnerships with clients worldwide.

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 4
Global Customer Base

Our products have been successfully implemented in over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 5
Trade Terms
  • Offer valid for 30 days
  • Delivery within 7 days after payment
  • Payment methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
Delivery Options
  • Sea freight: 15-60 days depending on destination
  • Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Our Services
  • 24-hour response to inquiries
  • Fluent English-speaking sales and support team
  • OEM services including logo printing and custom packaging
  • Experienced engineering support
High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 6
Pre-sale & After-sale Service
  • Pre-sale consultation to understand your requirements
  • Production updates with photos and testing videos
  • Comprehensive installation and operation guidance
  • Custom OEM/ODM services for product customization
  • 16-hour response time for technical support
Contact Details

Contact person: Vivian Zhou

WhatsApp: +86 13699796334

Wechat: junziyouxin | Skype: goldantell02

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control 7

Goldantell turnstiles - factory price, high quality, welcome your inquiry!
